The heart of the HyperPanel OS Development Kit is the PyBoard V1.1  that comes with the MicroPython. We plug our shield on it and we also need to flash it thru a JTAG. So we need to put some connectors on the Pyboard. It’s time to start building new kits.

News - Pyboard PCB
News - Pyboard PCB
News - Pyboard PCB
News - Pyboard PCB
News - Pyboard PCB

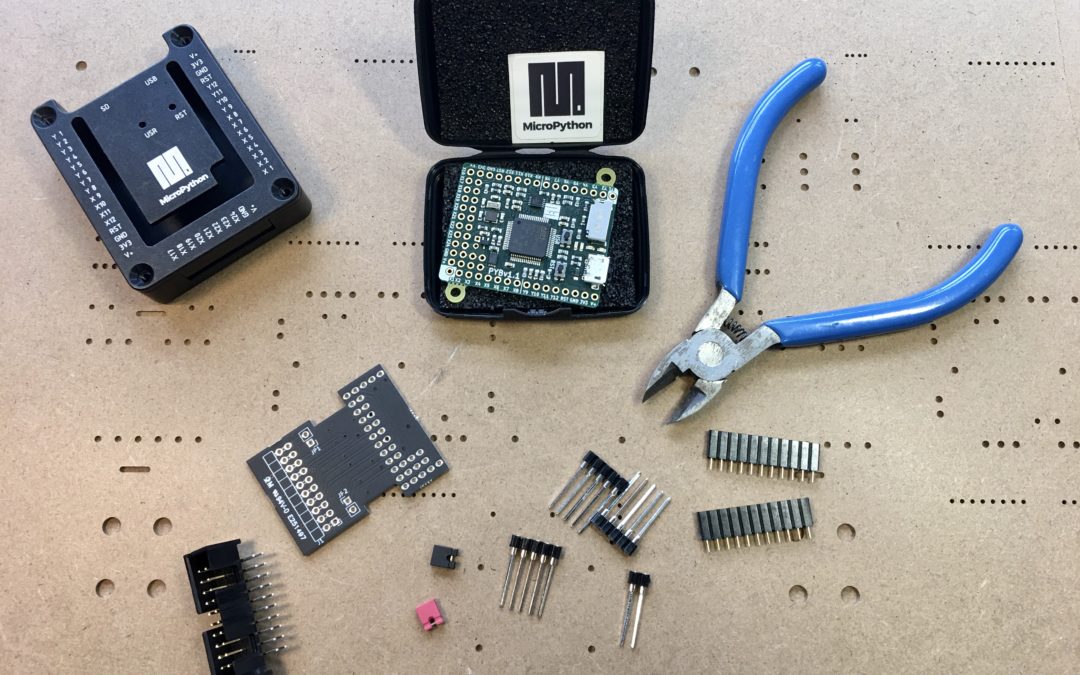

Here are some pictures of what we do In order to be able to simply connect our evaluation shield, we made a small PCB for the PyBoard. It is used to connect the Olimex connector. It also allows access to the 2 configuration jumpers. This PCB is also provided in a package that allows you to simply connect the shield on it. Finally, there is a sturdy metal package for safe handling of the kit.
